PulpTech Sales is pleased to offer the Satron VC Optical Consistency Transmitters.

Satron VC
Optical Consistency Transmitter

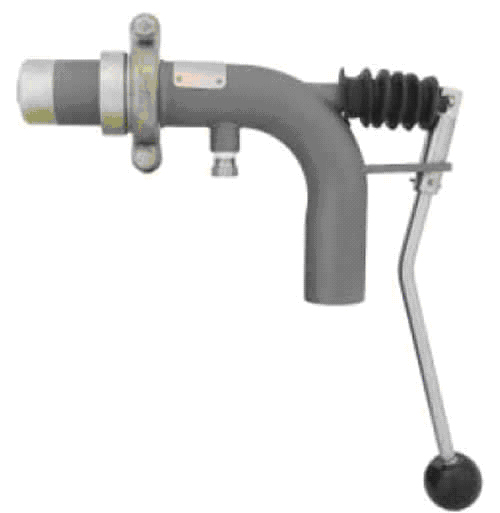

Satron SAVE
Consistency Sampler

Popular Applications:

• HD tower outlet
• HW and SW chests
• Screen inlets
• Feed to bleach plant
• Screen rejects
• Groundwood
• TMP CMTP

Other Products from Satron

Next Generation Optical Consistency Transmitter
Now Finally Technology to Replace the Old Mechanical Transmitters. Satron VC uses the latest optical consistency transmitter technology. It is suitable for all single grade pulps in consistency range of 0…7% Cs located mainly after washed pulp. Typical applications include measurements to screens, outlet from HD tower chests, HW and SW chests, screen rejects and many others. The Satron VC can provide an accurate and reliable consistency measurement without need for regular maintenance. Unlike shear force technology, the Satron VC is immune to changes in process conditions such as flow rate, pressure and temperature. The sensor can even be installed right next to a pump and can be removed and installed without shutting down the process line.

Remote display unit
The Satron VC remote display unit can be installed up to 10m away from the sensing unit. Inside the display unit is a terminal for up to 3 binary inputs (grade change…), 3 relay outputs (alarms…) and 2 analog milliamp loops. All connections can be used simultaneously. Intuitive, menu driven interface features simple set-up, calibration and troubleshooting functions.

Excellent reliability
The Satron VC has proven to have excellent reliability without failures. Depend on Satron VC for a reliable and maintenance-free consistency measurement.

PC Interface
When you want to have all the operations of the Smart transmitter, we recommend the use of Satron-VO Advisor Service Software program. PulpTech can deliver you the optional program, HART-Modem and HP-2133 Mini Note PC.

Features and Benefits:

• 4-20mA two wire connection
• Reliable-proven with over 100 installations
• No moving parts, No regular maintenance
• Excellent repeatability, linearity and resolution
• Single point calibration
• Immune for process conditions change: Flow rate, pressure, temperature, turbulence
• HART protocol interface included
• Industry standard to calibrate transmitter
